Imrie AT300




On this page:
Product Photos
Detailed Description
How to Buy

Imrie AT300 Product Photos

Back to top
Click images for a larger view




The Imrie AT300 unit alone with the Alternator and Earth connection leads

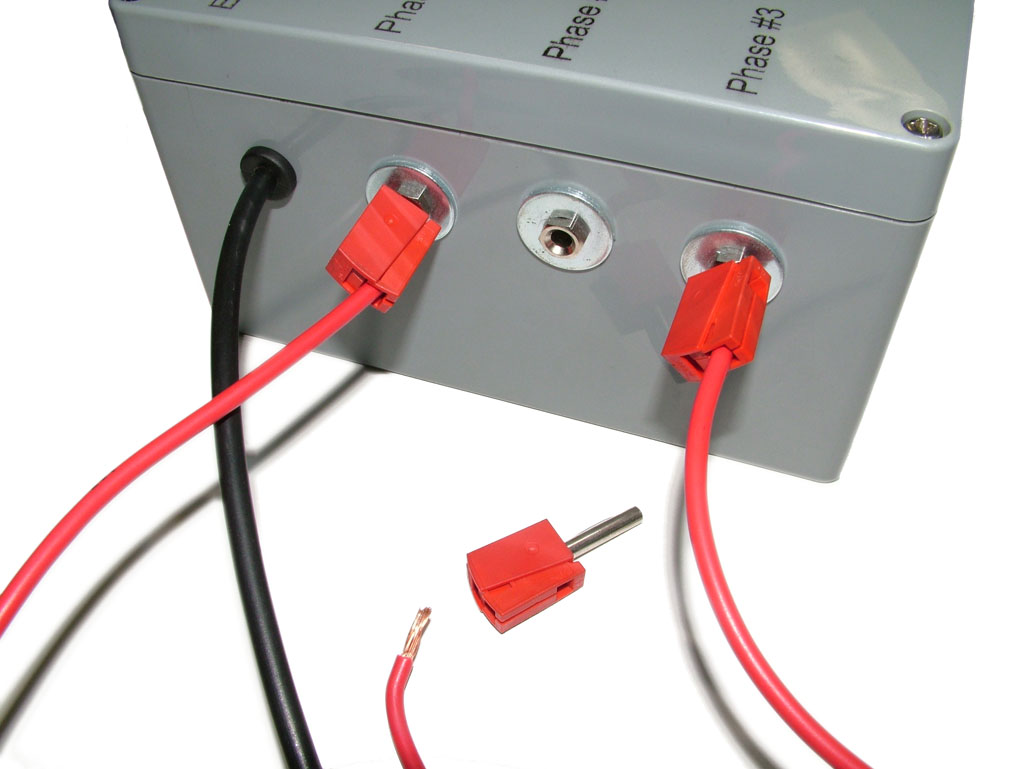

The Imrie AT300's banana connectors allow easy connection to all types of alternators



Imrie AT300 Detailed Description

Back to top

The Imrie AT300 is the first of a completely new line of products from Imrie. The Imrie AT300 is an easy-to-use appliance for testing Single or Three-Phase Alternators. The Imrie AT300 tests these alternators under load and gives you a visual representation of the alternator's output in watts, while at the same continuously checking for shorts to earth.

The Imrie AT300 incorporates quick connect type banana plugs, which allow for quick and easy connections and mean that any compatible looms can be used with this device.

Testing or checking a single or three-phase alternator is simple:

  • Simply disconnect the regulator and plug the Phase leads from the AT300 into each output terminal. (It is also possible to connect directly to the alternator)
  • Connect the 'Engine Earth' lead from the AT300 to a good engine earth.
  • Turn on the Imrie AT300, note the indicator LEDs will flash. After a couple of seconds only the blue LEDs will flash, this indicates the Imrie AT300 is started up and ready.
  • Start the engine and take note of the various LEDs on the Imrie AT300.
  • If at any RPM the 'Test Failure' LED illuminates, this indicates the alternator is faulty and has an internal short to earth, no further testing is required.
  • Increase and Decrease the RPM of the engine, and ensure the wattage LEDs on the AT300 light sequentially. If any of these LEDs fail to light or are delayed this indicates that the output is uneven. This generally means a burnt-out phase winding. However some models have ignition exciter coils which can also cause the LEDs to light in a delayed manner. (e.g. YFM250, 350, 400, CB250, LTFs etc.) Also it is important to note that some smaller alternators may not light all the LED rows.

The Imrie AT300 dissipates a large amount of power across the internal resistors. As a result the tester has the capability of getting extremely hot. If the Imrie AT300 detects that it is too hot an LED will illuminate. Stop using the tester immediately if this occurs, and allow it to cool.

How to buy

Back to top

RRP: AU$650 inc. GST

Small Coil Rewinds Pty. Ltd.
The Imrie AT300 is available for direct manufacturer purchase through Small Coil Rewinds in North Geelong, Victoria. Australia.
Please refer to the Contact Us section for details. (We accept all major credit cards, and PayPal)

To become an authorised reseller of this product contact Imrie (Small Coil Rewinds Pty. Ltd)
RRP is incl. of GST.
